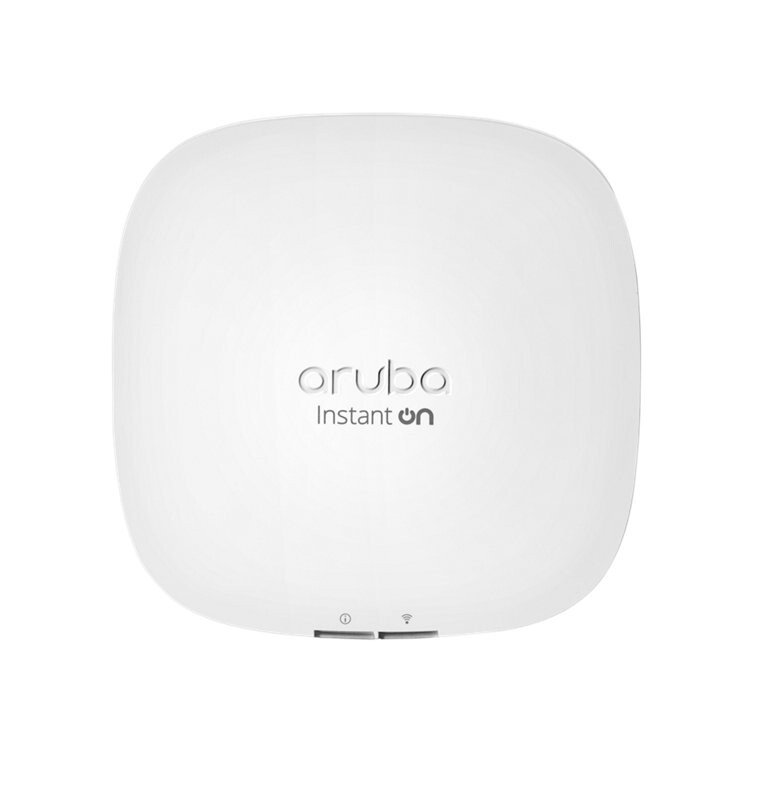

Aruba Instant On AP25 (RW) 4x4 Wi-Fi 6 AP

Vendor: HPE

Category: Network equipment / Wireless equipment

Article number: R9B28A

TNVED: 8517 62 00 00

Description: Certificates

EN 60601-1-1 and EN 60601-1-2 (for use in medical facilities)

Wi-Fi Alliance (WFA) 802.11ax certificate with (Wi-Fi 6), WPA2, WPA3

Input voltage

Power supply via Ethernet (POE): 802.3af (Class 3)

DC power supply (12V)

Note. Power supplies are sold separately.

Wi-Fi antenna

Built-in omni-directional antennas with a downward slope for 2x2 MIMO with peak antenna gain of 4.3 dBi in the 2.4GHz band and 5.6 dBi in the 5 GHz band (effective combined radiation pattern for both antennas in each band).

Connectivity options, standard IEEE 802.11aks

Ports (1) Gigabit Ethernet uplink port with POE input (802.3af)

Mounting

The access point comes with a white mounting clip that can be attached to both the wall and the ceiling.

You can also purchase a mount (R6P90A) that matches the aesthetic design and appearance of the access points and fits perfectly into your environment.

Power consumption

Maximum power consumption (in the worst case): 10.1W (PoE), 8.8W (direct current)

Radio coverage

Dual radio for simultaneous operation in two bands

802.11ax 2x2 MIMO, 5 GHz, wireless data transfer speeds up to 1.2 Gbit/s, multi-user MIMO support (Wi-Fi 6)

802.11ax 2x2 MIMO 2.4GHz with wireless data transfer speeds up to 574 Mbit/s (Wi-Fi 6)

Guarantee

Aruba Instant On warranty for 2 years with round-the-clock phone support, seven days a week for the first 90 days and live chat support throughout the warranty period. Community support while you are the owner of the products.

Differentiator

The Aruba Instant On AP22 indoor access points offer reliable, affordable, and business class 802.11ax Wi-Fi for high-performance, high-density small business environments such as hotels, restaurants, and professional offices. Supporting the Wi-Fi 6 standard, these access points have a peak data transfer rate of 1.2 Gbps and scale up to 25 access points without additional costs and difficulties. For use in countries and regions where no special regulatory regulation is required.

Weight 500 g (1.1 lb)

Sizes 37x160x160 mm (1.5 x 6.3x6.3 inches)
