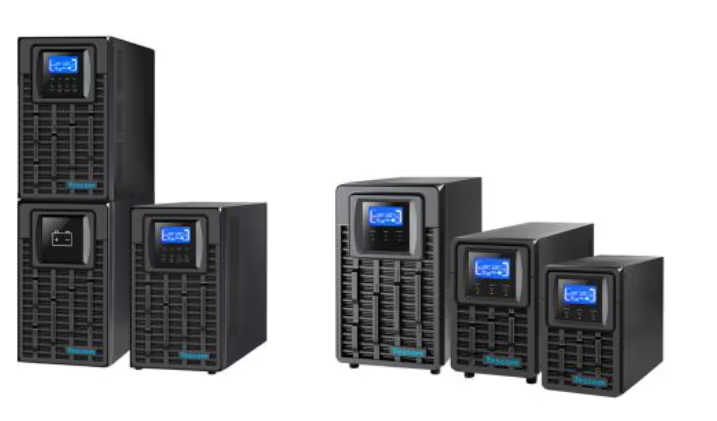

Tescom TEOS 106 series 6kVA On-line UPS

Vendor: Tescom

Category: UPS / On-line UPS

Article number: TE106

TNVED: 8504 40 30 00

Description: Brand

Tescom

Product Type

UPS

Row

Theos 106

Part number

TE106

Width x Depth x Height

31.8 x 19 x 36.9 cm

Weight

12 kg

Operating temperature range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Rated input current (max. load)

176-300 V AC (at 100% load)

Rated input voltage

220/230/240 V AC

The input phase

One stage

Output power (volts, amperes)

6000

Output power (kg-volt-ampere)

6

Output power (VA)

5400

Output power (kW)

5.4

The power factor

0,9

The peak factor

3:01

Rated output voltage

220/230/240 V AC

Frequency compatibility

46-54 Hz or 56-64 Hz (synchronized range)

Waveform (battery mode)

Pure sine wave

Battery Type

12 V/9 Ah

Battery recharge rate

9 hours of recovery to 90% capacity

LED indicators

AC mode, battery level, battery operation mode, fault indicators, load level

Relative humidity

from 0 to 95%, non-condensing

Audible noise

maximum 55 dBA at a distance of 1 m

Transfer time

4 ms (bypass inverter)
